12.3 Stacks and Queues

As we said when we introduced the idea of a linear list, different applications require lists with different operations. It turns out that, for many applications, insertions and deletions are only required at the ends of the list. For such applications, it is often more efficient if we use lists that only have the operations necessary for the problem. In this section, we will examine two of the most important types of linear lists for which there are restrictions on the points at which insertions and deletions can be made.

Stacks

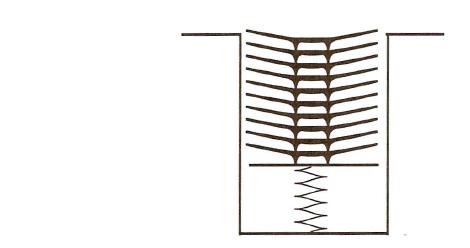

The first of these is the stack - a linear list in which all insertions, deletions, and inspections take place at one end. The end at which activity takes place is called the top of the stack; the other end is called the bottom of the stack. Stacks have a physical analogy in the spring-operated mechanisms sometimes used to store stacks of plates in cafeterias. In these devices, if you place a new plate on the top of the stack, the added pressure pushes the stack down a bit; if you remove a plate from the top, the decreased pressure allows the remaining plates to pop up a bit.


Following this analogy, to insert an item into a stack, we push it onto the stack; to delete an item, we pop it from the stack. Because of this, stacks are sometimes referred to as pushdown stores. They are also referred to as LIFO (Last In, First Out) lists because the last item pushed onto the stack will be the first item popped from it.

To make the concept of a stack as an ADT more formal, we can make the following definition: a stack is a linear list with the following operations:

Java actually supplies a Stack class in the package java.util with methods for each of these operations but we will not be using it as it would spoil the fun of creating our own class for implementing this data type.

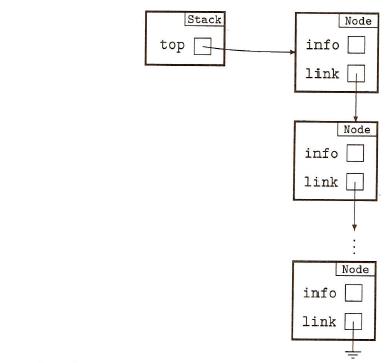

To implement a stack, we could use a partially-filled array, a process that we explored in Chapter 8. Here, however, we will examine an alternative structure for stack implementation - dynamic allocation using a linked list. The form of such a linked list is the usual one that we have been using up to now, with each node consisting of info and link fields. We often draw a stack as shown in the following diagram to reinforce the idea that the first node is at the "top" of the stack but, in fact, there is nothing new in the way that the list is defined.


Example 1

To insert an item in such a stack, we can use the following method (in the class Stack):
public void push (int item)
{
   top = new Node(item,top);
}

Example 2

This method (for the class Stack) returns the value currently at the top of the stack without altering the stack.
public int peek ()
{
   if (top == null)
      throw new RuntimeException("peek: empty stack");
   else
      return top.info;
}
Notice that if the method finds that the stack is empty, there is no value for the method to return. In such a situation, the method throws an exception. Unless we take some action to handle the exception, the program's execution will terminate. Exceptions and exception handling are discussed in Appendix E.

The other methods required for a stack (pop and isEmpty) are also quite simple. Their implementations are left as exercises.

Queues

A queue is another linear list with restrictions on insertions and deletions. A queue operates like a human queue at a checkout line in a store. All insertions take place at one end, the rear of the queue, and all deletions take place at the other end, the front of the queue. Because the first item inserted into a queue will be the first item deleted, a queue is also known as a First In, First Out, or FIFO list. As we did for a stack, we can make the idea of a queue as an ADT more precise. A queue is a linear list with the following operations:

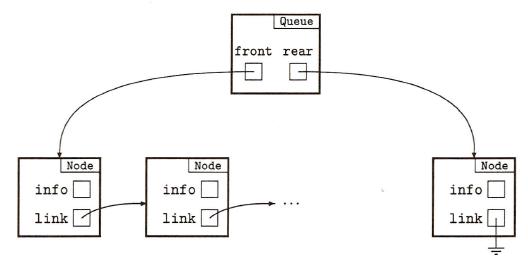

To implement a queue, we can again use either sequential allocation with an array or linked allocation. We will look only at linked allocation in this section. Because insertions and deletions take place at opposite ends of the queue, it is useful to have separate references to the front and the rear of the queue. This is illustrated in the next diagram in which the object at the top of the diagram is of type Queue.


We can begin to create a Queue class by setting up fields for the references to the two ends of the lists along with our usual Node inner class.

class Queue
{
   private Node front;
   private Node rear;

   class Node
   {
      int info;
      Node link;

      Node (int i, Node n)
      {
         info = i;
         link = n;
      }
   }
}

To insert a new node in a queue, we must examine two cases. If the queue is empty, then both front and rear must be set to refer to the new node. Otherwise, the new node must be inserted after the node referred to by rear after which rear must be redirected to refer to the newly inserted node.

Example 3

This method inserts a new node into a list of the Queue class.

public void enqueue (int item)
{
   Node temp = new Node(item,null);
   if (rear == null)
      // queue was empty
      front = rear = temp;
   else
      // add node at rear of queue
      rear = rear.link = temp;
}

Exercise 12.3

    1. The Back operation on a Web browser is an application that uses a stack. Give two other common applications of stacks.
    2. Find two common applications of queues.
  2. Write instance methods to implement the pop and isEmpty operations of the Stack class. Have your pop method throw an exception (as in Example 2) if the stack is empty.
  3. Write instance methods for the Queue class that implement the peek and dequeue operations. Each of the methods should throw an exception (as in Example 2) if the queue is empty.
  4. In our implementation of a queue, the links in the nodes pointed backward, from the front of the queue to the rear. If the links were in the other direction, would it still be possible to insert and/or delete items efficiently? Justify your answer in each case by writing a suitable method if you think that it is possible or by explaining why you think that it is not possible

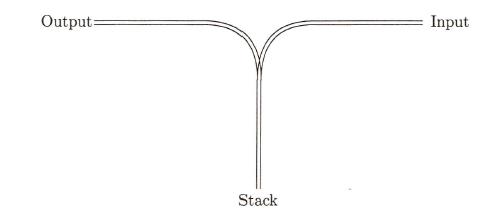

  5. A model of a stack is provided by a railroad switching network as shown in the next diagram.


    Railroad cars, numbered 1,2,3, ... ,n enter at the right and leave at the left. As cars enter, we can consider them to be pushed onto the stack; as they leave, we can consider them to be popped from the stack. The order in which they leave at the left can be altered (for a given arrival order) by choosing different sequences of push and pop operations. For example, if there are three cars, then the initial order (1,2,3) can be changed to 2,1,3 by performing the following sequence of operations: push, push, pop, pop, push, pop.

    1. Find all the possible output sequences that can be produced from the input sequence 1,2,3.
    2. Repeat part (a) for the input sequence 1,2,3,4.
